SGLang Observability

This guide covers metrics, tracing, and visualization for SGLang deployments running through Dynamo.

Prometheus Metrics

When running SGLang through Dynamo, SGLang engine metrics are automatically passed through and exposed on Dynamo’s /metrics endpoint (default port 8081). This allows you to access both SGLang engine metrics (prefixed with sglang:) and Dynamo runtime metrics (prefixed with dynamo_*) from a single worker backend endpoint.

For the complete and authoritative list of all SGLang metrics, always refer to the official SGLang Production Metrics documentation.

For Dynamo runtime metrics, see the Dynamo Metrics Guide.

For visualization setup instructions, see the Prometheus and Grafana Setup Guide.

Environment Variables

Getting Started Quickly

This is a single machine example.

Start Observability Stack

For visualizing metrics with Prometheus and Grafana, start the observability stack. See Observability Getting Started for instructions.

Launch Dynamo Components

Launch a frontend and SGLang backend to test metrics:

$
# Start frontend (default port 8000, override with --http-port or DYN_HTTP_PORT env var)
$
$ python -m dynamo.frontend
$
$
# Enable system metrics server on port 8081
$
$ DYN_SYSTEM_PORT=8081 python -m dynamo.sglang --model <model_name> --enable-metrics

Wait for the SGLang worker to start, then send requests and check metrics:

$
# Send a request
$
curl -H 'Content-Type: application/json' \
>
-d '{
>
  "model": "<model_name>",
>
  "max_completion_tokens": 100,
>
  "messages": [{"role": "user", "content": "Hello"}]
>
}' \
>
http://localhost:8000/v1/chat/completions
$
$
# Check metrics from the worker
$
curl -s localhost:8081/metrics | grep "^sglang:"

Exposed Metrics

SGLang exposes metrics in Prometheus Exposition Format text at the /metrics HTTP endpoint. All SGLang engine metrics use the sglang: prefix and include labels (e.g., model_name, engine_type, tp_rank, pp_rank) to identify the source.

Example Prometheus Exposition Format text:

# HELP sglang:prompt_tokens_total Number of prefill tokens processed.
# TYPE sglang:prompt_tokens_total counter
sglang:prompt_tokens_total{model_name="meta-llama/Llama-3.1-8B-Instruct"} 8128902.0
# HELP sglang:generation_tokens_total Number of generation tokens processed.
# TYPE sglang:generation_tokens_total counter
sglang:generation_tokens_total{model_name="meta-llama/Llama-3.1-8B-Instruct"} 7557572.0
# HELP sglang:cache_hit_rate The cache hit rate
# TYPE sglang:cache_hit_rate gauge
sglang:cache_hit_rate{model_name="meta-llama/Llama-3.1-8B-Instruct"} 0.0075

Note: The specific metrics shown above are examples and may vary depending on your SGLang version. Always inspect your actual /metrics endpoint or refer to the official documentation for the current list.

Metric Categories

SGLang provides metrics in the following categories (all prefixed with sglang:):

• Throughput metrics - Token processing rates
• Resource usage - System resource consumption
• Latency metrics - Request and token latency measurements
• Disaggregation metrics - Metrics specific to disaggregated deployments (when enabled)

Note: Specific metrics are subject to change between SGLang versions. Always refer to the official documentation or inspect the /metrics endpoint for your SGLang version.

Available Metrics

The official SGLang documentation includes complete metric definitions with:

• HELP and TYPE descriptions
• Counter, Gauge, and Histogram metric types
• Metric labels (e.g., model_name, engine_type, tp_rank, pp_rank)
• Setup guide for Prometheus + Grafana monitoring
• Troubleshooting tips and configuration examples

For the complete and authoritative list of all SGLang metrics, see the official SGLang Production Metrics documentation.

Implementation Details

• SGLang uses multiprocess metrics collection via prometheus_client.multiprocess.MultiProcessCollector
• Metrics are filtered by the sglang: prefix before being exposed
• The integration uses Dynamo’s register_engine_metrics_callback() function
• Metrics appear after SGLang engine initialization completes

Distributed Tracing

Dynamo propagates W3C Trace Context headers through the SGLang request pipeline, allowing you to correlate traces across the frontend, router, and individual SGLang workers in a disaggregated deployment.

Prerequisites

SGLang’s engine-internal tracing requires the opentelemetry packages. These are declared as SGLang’s [tracing] extra. Install them into your Dynamo environment:

$
uv pip install opentelemetry-api opentelemetry-sdk opentelemetry-exporter-otlp opentelemetry-exporter-otlp-proto-grpc

Without these packages, Dynamo-side spans (frontend, handler) will still work, but SGLang’s internal engine spans will not be emitted and you will see a warning: "Tracing is disabled because the packages cannot be imported."

How Trace Propagation Works

Frontend (Rust)
  creates span, embeds trace_id + span_id in Context
    |
    v
Dynamo RPC (NATS transport)
  Context serialized with trace_id, span_id
    |
    v
SGLang Handler (Python)
  handler_base.py:_get_trace_header(context)
  builds W3C traceparent: "00-{trace_id}-{span_id}-01"
    |
    v
sgl.Engine.async_generate(
    ...,
    rid=trace_id,                        # request ID = trace ID
    external_trace_header=traceparent    # W3C header for SGLang internal spans
)
    |
    v
SGLang Engine (internal spans attached to same trace)

Key implementation files:

• components/src/dynamo/common/utils/otel_tracing.py - W3C traceparent header builder
• components/src/dynamo/sglang/request_handlers/handler_base.py:71-84 - Extracts trace context from Dynamo Context object
• components/src/dynamo/sglang/request_handlers/llm/decode_handler.py - Passes external_trace_header and rid=trace_id to engine.async_generate()

Environment Variables

SGLang-Specific Flags

Both flags are required for end-to-end tracing through the SGLang engine. Without --enable-trace, the Dynamo handler still creates spans, but SGLang’s internal engine spans will not be linked.

Launch with Tracing

The disaggregated launch script supports --enable-otel to enable tracing across all components:

$
# Start observability stack first
$
docker compose -f deploy/docker-compose.yml up -d
$
docker compose -f deploy/docker-observability.yml up -d
$
$
# Launch SGLang disaggregated with tracing
$
cd examples/backends/sglang/launch
$
./disagg.sh --enable-otel

Or manually for an aggregated deployment:

$
export DYN_LOGGING_JSONL=true
$
export OTEL_EXPORT_ENABLED=true
$
export OTEL_EXPORTER_OTLP_TRACES_ENDPOINT=http://localhost:4317
$
$
# Frontend
$
OTEL_SERVICE_NAME=dynamo-frontend python -m dynamo.frontend &
$
$
# SGLang worker with tracing
$
OTEL_SERVICE_NAME=dynamo-worker-sglang \
>
DYN_SYSTEM_PORT=8081 \
>
python -m dynamo.sglang \
>
  --model Qwen/Qwen3-0.6B \
>
  --enable-metrics \
>
  --enable-trace \
>
  --otlp-traces-endpoint localhost:4317

What You’ll See in Traces

With tracing enabled, each inference request produces a single end-to-end trace spanning the full request lifecycle:

• Frontend http-request span - Root span from the HTTP service, includes method/uri/trace_id
• KV Router spans - kv_router.route_request, kv_router.select_worker, kv_router.compute_block_hashes, kv_router.find_matches, kv_router.compute_seq_hashes, kv_router.schedule
• Worker handle_payload span - The Dynamo RPC handler on the worker side, with component/endpoint/namespace labels
• SGLang engine spans - Req <id>, Scheduler, Tokenizer, request_process, prefill_forward, decode_loop, Bootstrap Room (for disagg)
• Semantic conventions - gen_ai.usage.prompt_tokens, gen_ai.usage.completion_tokens, gen_ai.latency.time_to_first_token, etc.

Example trace tree for a KV-routed request:

dynamo-frontend: http-request (root)
  dynamo-frontend: kv_router.route_request
    dynamo-frontend: kv_router.select_worker
      kv_router.compute_block_hashes
      kv_router.find_matches
      kv_router.compute_seq_hashes
      kv_router.schedule
    dynamo-worker-1: handle_payload
      sglang: Bootstrap Room 0x0
        sglang: Req <trace-id-prefix>
          sglang: Scheduler [TP 0]
            request_process
            prefill_forward
            decode_loop (repeated per token)
          sglang: Tokenizer
            tokenize
            dispatch

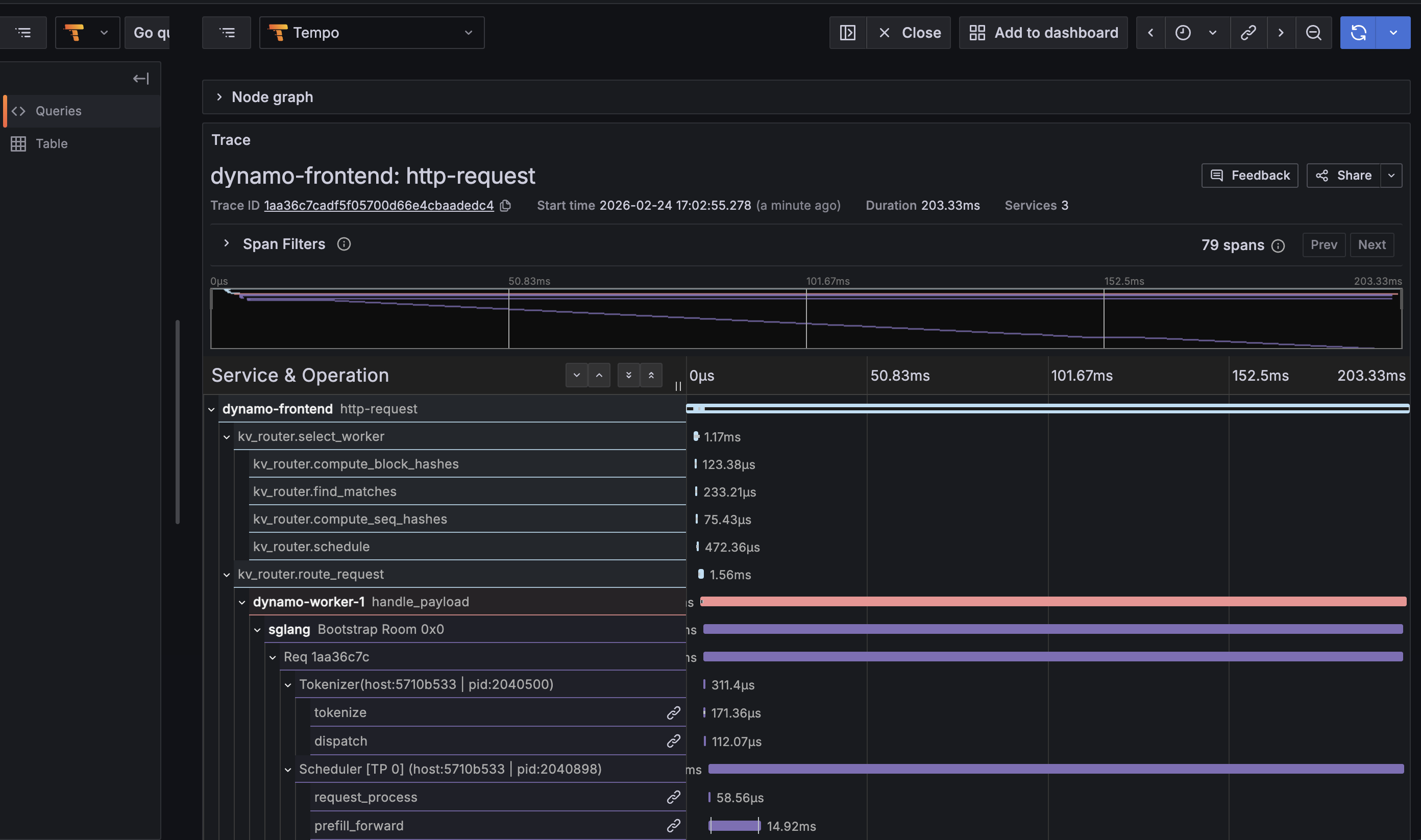

Viewing Traces

1. Open Grafana at http://localhost:3000 (username: dynamo, password: dynamo)
2. Navigate to Explore (compass icon)
3. Select Tempo as the data source
4. Use the Search tab:
   • Filter by Service Name (e.g., dynamo-frontend, dynamo-worker-1, sglang)
   • Filter by Span Name (e.g., http-request, handle_payload, Req *, decode_loop)
   • Filter by Tags (e.g., rid=<trace-id>, gen_ai.response.model=Qwen/Qwen3-0.6B)
5. Click a trace to view the flame graph spanning frontend -> router -> worker -> engine

Send a request with x-request-id for easy lookup:

$
curl -H 'Content-Type: application/json' \
>
  -H 'x-request-id: my-trace-001' \
>
  -d '{"model": "Qwen/Qwen3-0.6B", "max_completion_tokens": 50,
>
       "messages": [{"role": "user", "content": "Hello"}]}' \
>
  http://localhost:8000/v1/chat/completions

For more details on the Tempo/Grafana tracing infrastructure, see the Dynamo Tracing Guide.

SGLang Grafana Dashboard

Dynamo ships a pre-provisioned Grafana dashboard for SGLang at deploy/observability/grafana_dashboards/sglang.json. It is automatically loaded when the observability stack starts.

Dashboard Panels

The dashboard is organized into five sections:

Accessing the Dashboard

1. Open Grafana at http://localhost:3000
2. Login with dynamo / dynamo
3. Click Dashboards in the left sidebar
4. Select SGLang Engine

Other available dashboards:

• Dynamo Dashboard (dynamo.json) - Frontend and component metrics
• DCGM Metrics (dcgm-metrics.json) - GPU utilization, memory, power
• KVBM (kvbm.json) - KV block manager metrics
• Disagg Dashboard (disagg-dashboard.json) - Disaggregated serving metrics

Exposing on a Remote VM

When developing on a remote VM (cloud instance, bare metal, etc.), the observability ports are only bound to localhost inside the VM. You have two options to access them.

Option 1: SSH Port Forwarding (Recommended)

Forward the relevant ports through your SSH connection. No firewall changes needed, traffic is encrypted.

$
# Forward Grafana (3000), Prometheus (9090), and Tempo (3200)
$
ssh -L 3000:localhost:3000 \
>
    -L 9090:localhost:9090 \
>
    -L 3200:localhost:3200 \
>
    user@your-vm-ip

Then open http://localhost:3000 in your local browser.

For a long-running tunnel in the background:

$
ssh -fN \
>
    -L 3000:localhost:3000 \
>
    -L 9090:localhost:9090 \
>
    -L 3200:localhost:3200 \
>
    user@your-vm-ip

Option 2: Firewall Rules

Open the ports directly. Only use this on trusted networks.

$
# Ubuntu/Debian
$
sudo ufw allow 3000/tcp   # Grafana
$
sudo ufw allow 9090/tcp   # Prometheus
$
$
# Or for cloud VMs, add inbound rules in your security group for ports 3000, 9090

Then access http://<vm-ip>:3000 directly.

Headless / Agent Access

For CI pipelines, AI coding agents, or headless workflows where no browser is available, you can query Grafana and Prometheus directly via their APIs:

$
# Query Prometheus for SGLang token throughput
$
curl -s 'http://localhost:9090/api/v1/query?query=rate(sglang:generation_tokens_total[1m])' | python3 -m json.tool
$
$
# Query Prometheus for GPU KV cache usage
$
curl -s 'http://localhost:9090/api/v1/query?query=dynamo_component_gpu_cache_usage_percent' | python3 -m json.tool
$
$
# List available Grafana dashboards
$
curl -s -u dynamo:dynamo http://localhost:3000/api/search | python3 -m json.tool
$
$
# Get the SGLang dashboard by title
$
curl -s -u dynamo:dynamo 'http://localhost:3000/api/search?query=SGLang' | python3 -m json.tool
$
$
# Fetch a specific dashboard by UID
$
curl -s -u dynamo:dynamo http://localhost:3000/api/dashboards/uid/<dashboard-uid> | python3 -m json.tool
$
$
# Snapshot current metrics via Prometheus range query (last hour)
$
START=$(date -u -d '1 hour ago' +%Y-%m-%dT%H:%M:%SZ)
$
END=$(date -u +%Y-%m-%dT%H:%M:%SZ)
$
curl -s "http://localhost:9090/api/v1/query_range?query=sglang:cache_hit_rate&start=${START}&end=${END}&step=15s"

This is useful for automated benchmarking pipelines where you want to capture metrics programmatically alongside performance results.
